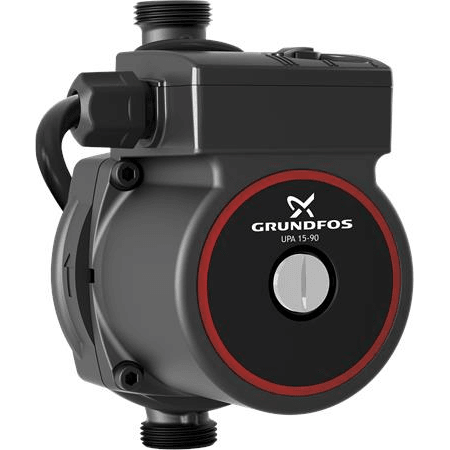

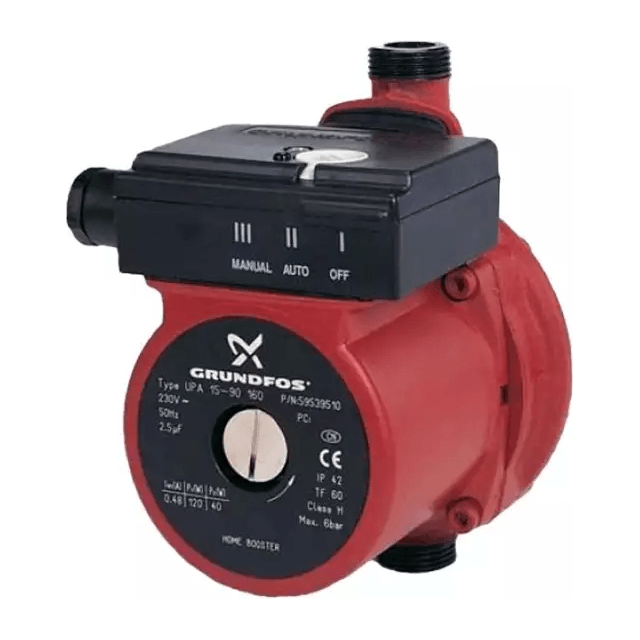

Grundfos UPA 15-90 Circulating Pump

Grundfos UPA 15-90 Circulating Pump Domestic hot water recirculation Origin - Italy The Grundfos UPA 15-90 N is a small stainless steel circulator pump designed for...
Vendor: Grundfos
SKU: 631581156815
Availability: In Stock
Product Type: Water Pump
₱15,000.00
₱15,000.00
  • KHM Megatools Corp.
  • KHM Megatools Corp.
  • KHM Megatools Corp.
  • KHM Megatools Corp.

Same Day Delivery within Metro Manila

up to 20kg COD payment option for Metro Manila.

Most BRANDS have Price Ceiling Protection Online

Get the best discounts by asking for a quotation or contact us directly. 100% Authentic.

Prices & specifications are subject to change without prior notice.

Grundfos UPA 15-90 Circulating Pump | Grundfos by KHM Megatools Corp.

Vendor: Grundfos

Grundfos UPA 15-90 Circulating Pump

₱15,000.00

Vendor: Grundfos

Grundfos UPA 15-90 Circulating Pump

₱15,000.00

Grundfos UPA 15-90 Circulating Pump

  • Domestic hot water recirculation
  • Origin - Italy

The Grundfos UPA 15-90 N is a small stainless steel circulator pump designed for BOOSTING EXISTING WATER PRESSURE in domestic properties, can also be used to provide ADDITIONAL BOOSTING PRESSURE to Overhead or gravity fed hot and cold water taps and similar outlet points.

Specifications

Voltage - 220 VAC / 60 Hz
Power - 120 watts
Max. Head - 9 m
Max. Flow - 30 l/min
Max. Working Pressure - 6 bars / 87 psi
Liquid temperature range: 2 .. 60 °C
Technical: TF class: 60
Materials: Pump housing: Cast iron
Impeller: PP Composite
Installation: Maximum operating pressure: 6 bar
Pipe connection: 3/4

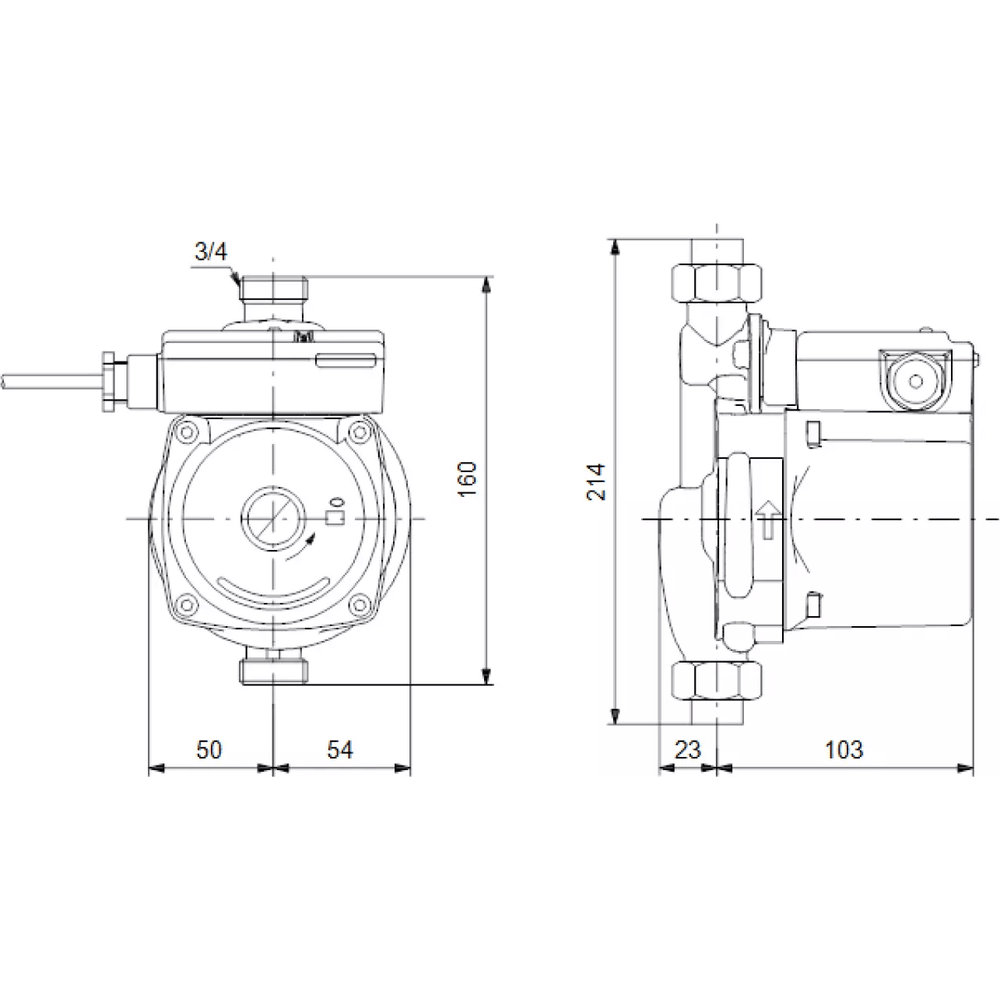

Port-to-port length: 160 mm
Max. power input: 120 W
Mains frequency: 60 Hz
Rated voltage: 1 x 127 V
Current in speed 3: 1 A
Capacitor size - run: 10 µF
Enclosure class (IEC 34-5): X2D
Insulation class (IEC 85): F
Gross weight: 2.7 kg
Shipping volume: 0.004 m³

*THIS CANNOT BE USED TO SUCTION WATER FROM A SOURCE, THE GRUNDFOS UPA IS DESIGNED TO BOOST EXISTING WATERFLOW

Applications

  • Domestic applications requiring high pressure in taps, showers, gas boiler inlets and other domestic tapping points:
  • Roof top tank boosting (downward firing like in a roof SOLAR WATER HEATER SYSTEM)
  • Instant (tank-less) water heater boosting, also called a HEATER PUMP
  • Domestic boosting with EXISTING inlet pressure
  • Suitable for hot and cold water applications. Temperatures up to 95° C.
  • Capable of boosting water in multiple outlets at a time (1-4 taps) making it suitable for flats with a shared water supply and for one-family houses: -
  • Urban areas with low water pressure at peak demand - Joined housing units sharing low-pressure water supply
  • Rural areas with low water pressure

Features and benefits

New built-in flow switch
The new unique and patented built-in flow switch automatically starts the pump when a tapping point is turned on, thereby increasing the water pressure. When the tap is closed, the flow switch immediately stops the pump.

Compact design
The compact design makes the UPA 120 perfect for installation even in confined spaces.

Automatic start/stop
The built-in flow switch automatically starts and stops the pump according to demand to ensure the required water pressure. Easy to install The UPA 120 with the new built-in flow switch is very easy to install. It is virtually a plug-and-pump solution.

Silent operation
Built on the high-quality wet-runner technology the UPA 120 offers smooth and silent operation, making it a popular choice in private homes.
