Height Gauge for Precision Measurement, Layout & Inspection Work

Height gauges are precision measuring instruments used for accurate vertical measurement, marking, and inspection tasks in machining, fabrication, and quality control environments. Commonly used on surface plates, these tools help users measure part height, check dimensional accuracy, and mark layout lines during manufacturing or workshop processes. This collection includes height gauges suitable for machine shops, engineering workshops, tool rooms, and inspection departments where reliable measurement and repeatable marking are required.

Available Height Gauge Products

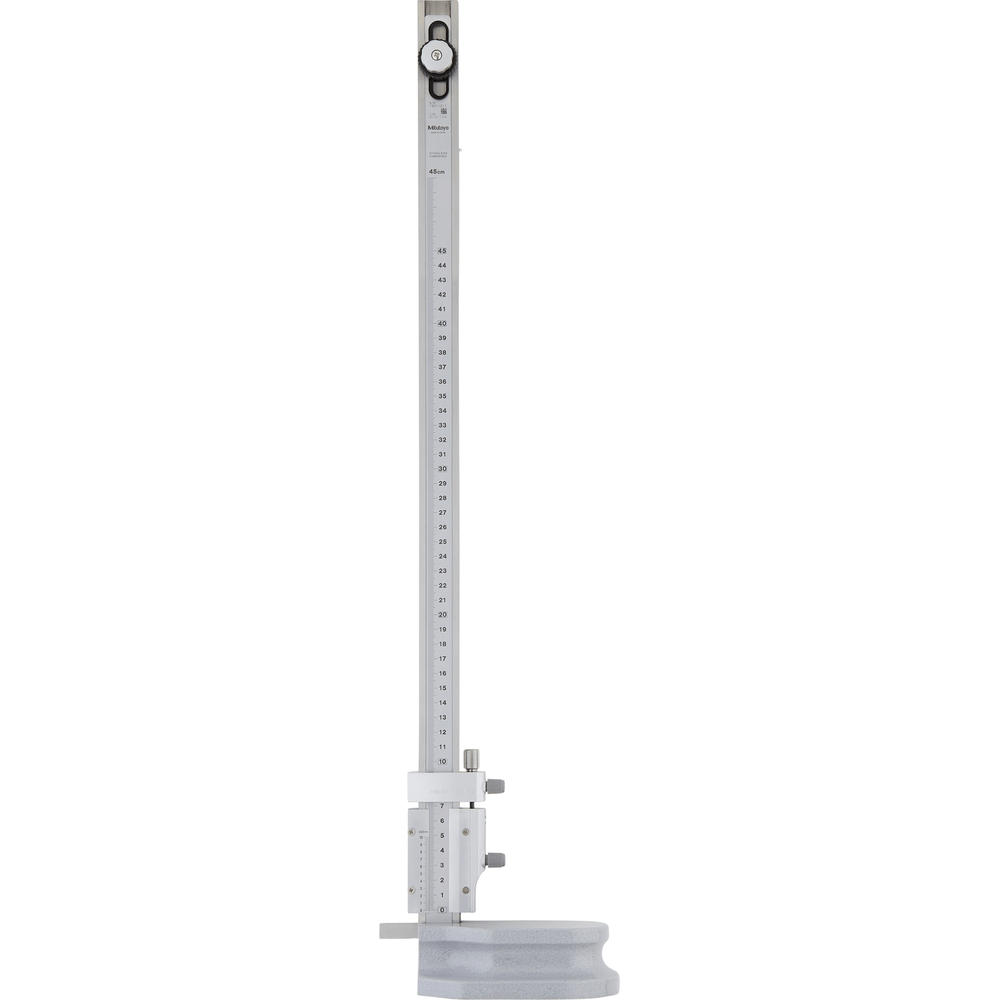

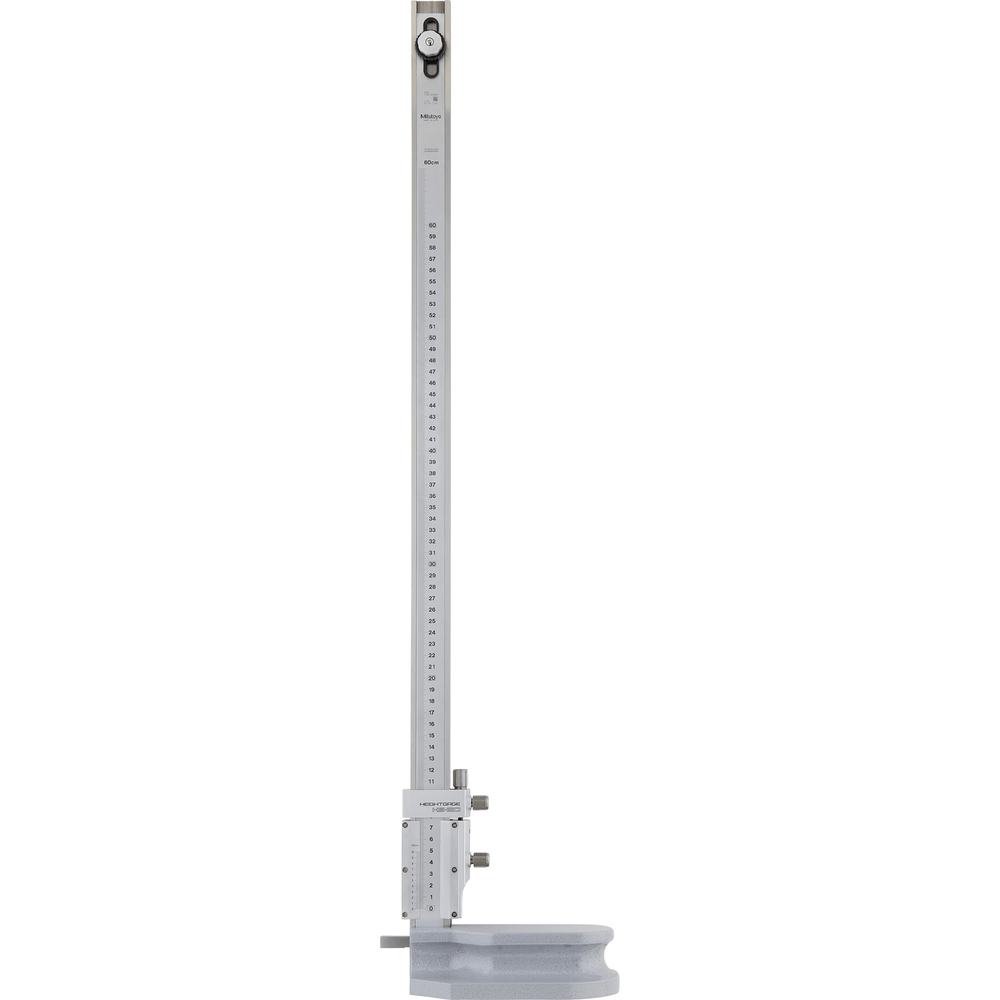

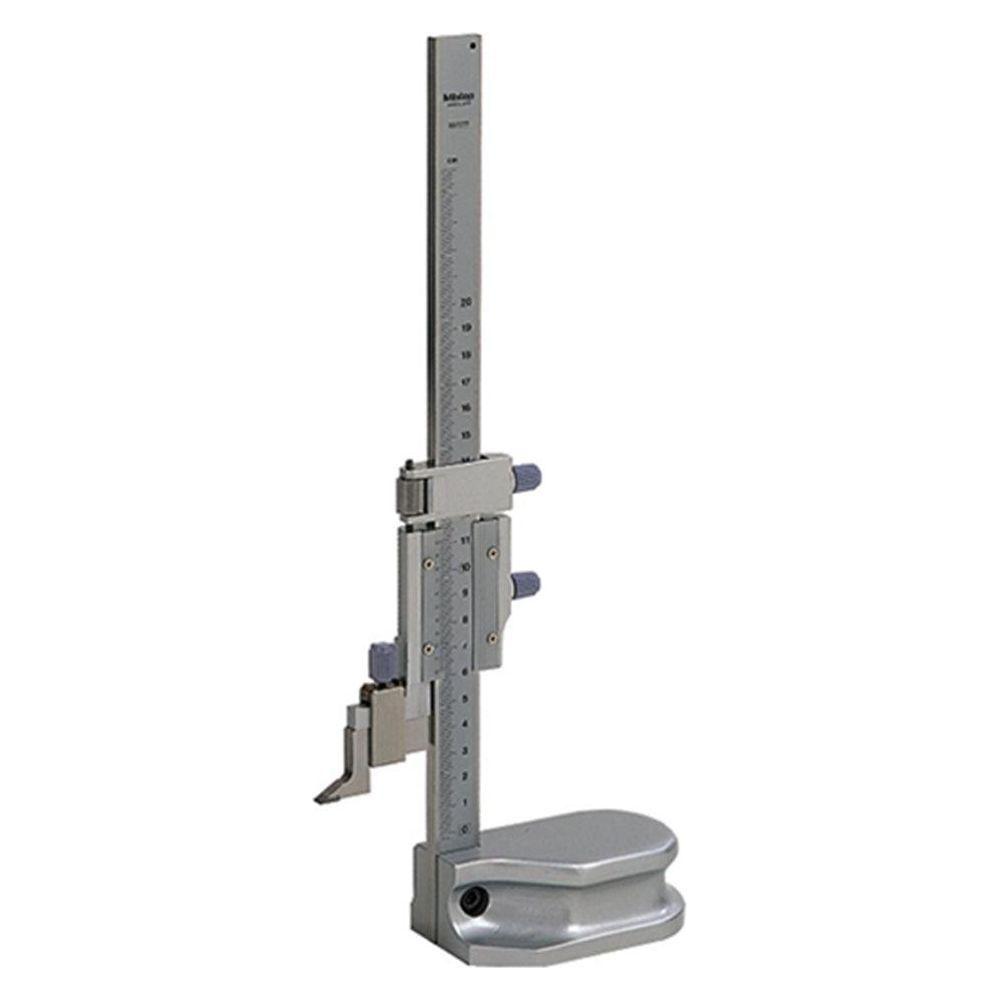

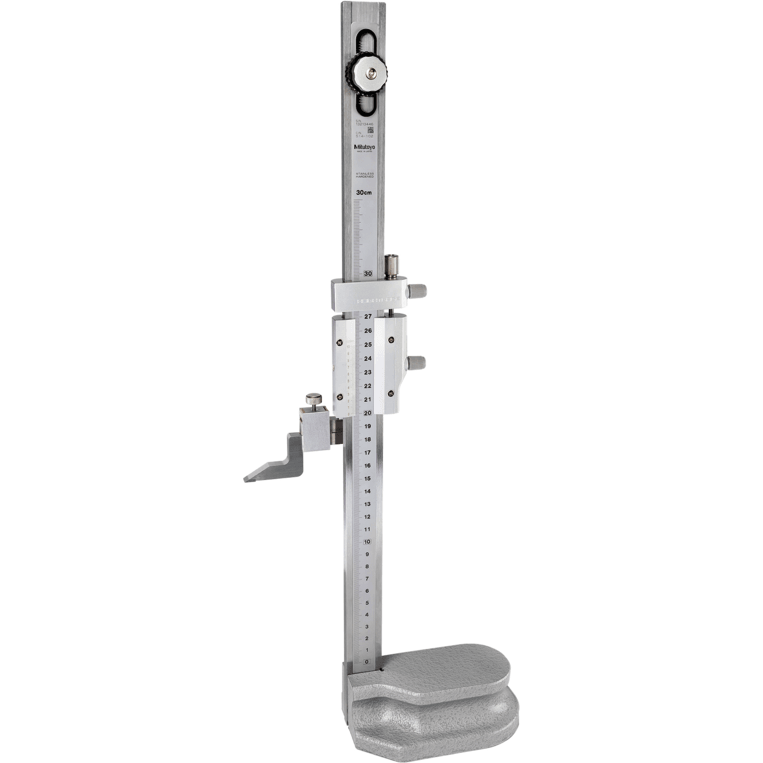

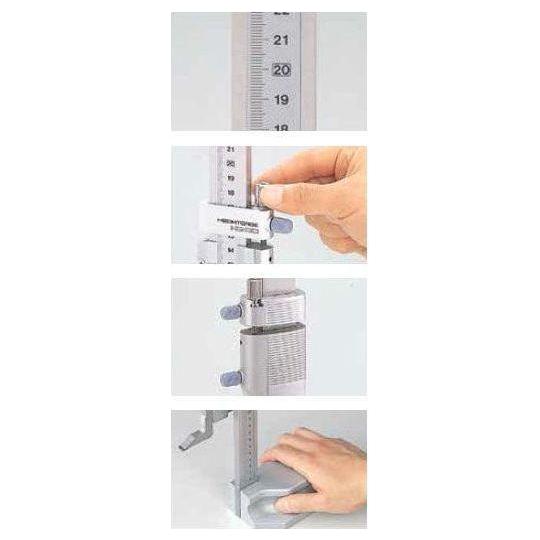

• Vernier Height Gauges – Manual measurement tools for precise height checking and layout work

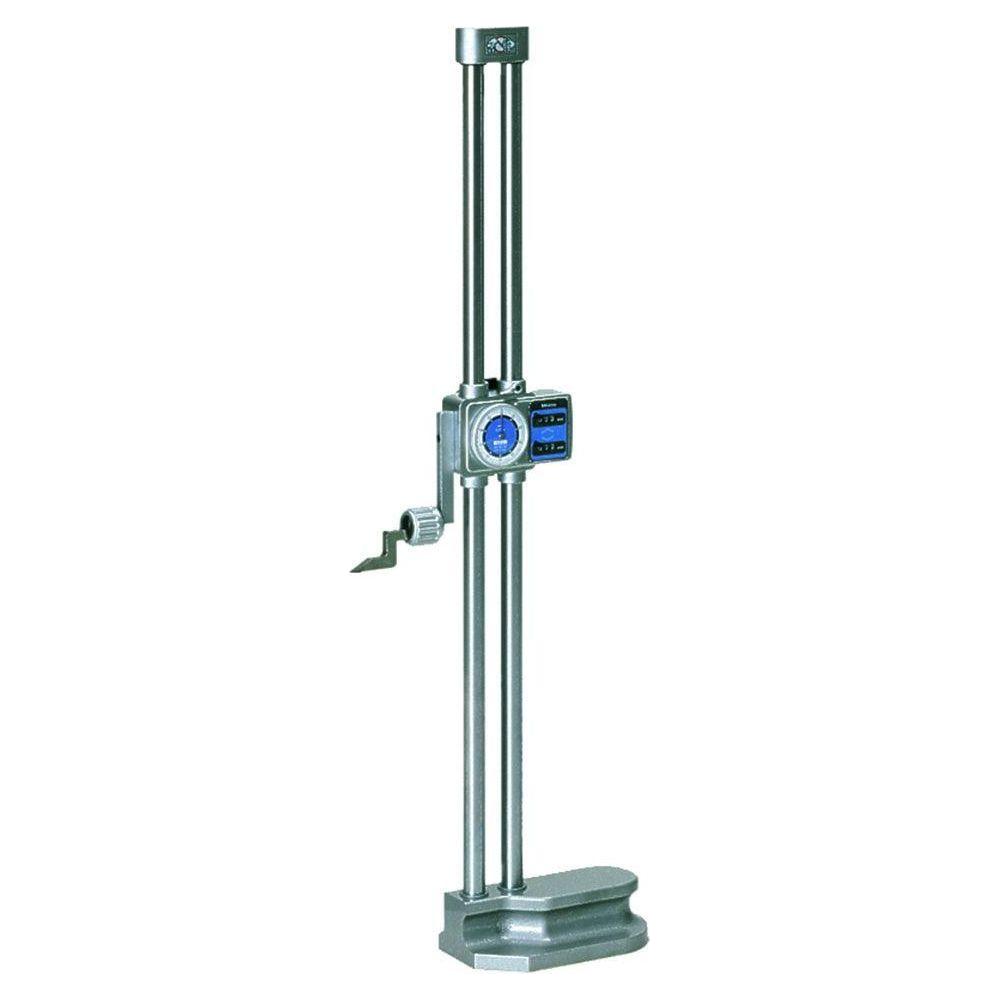

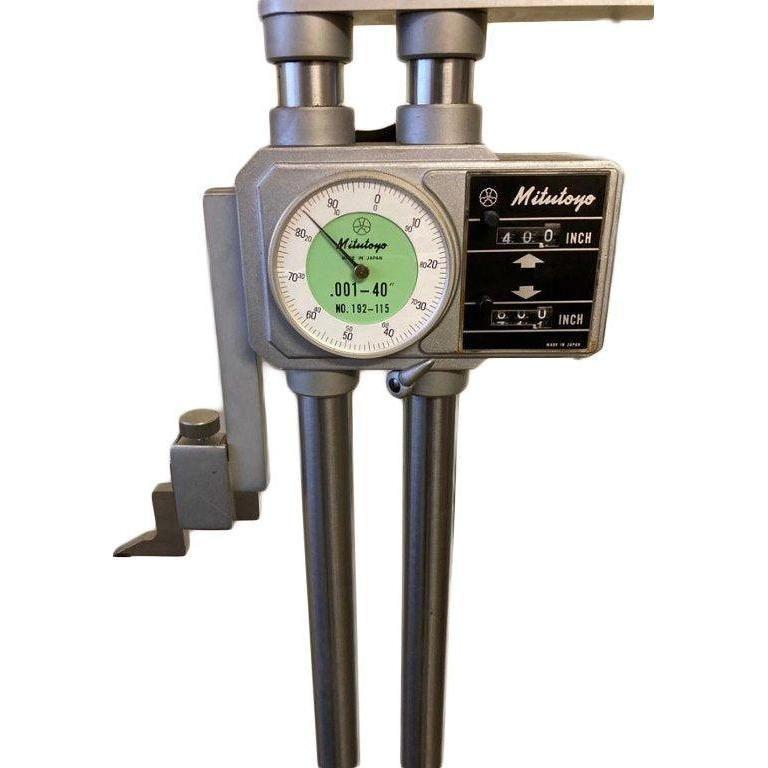

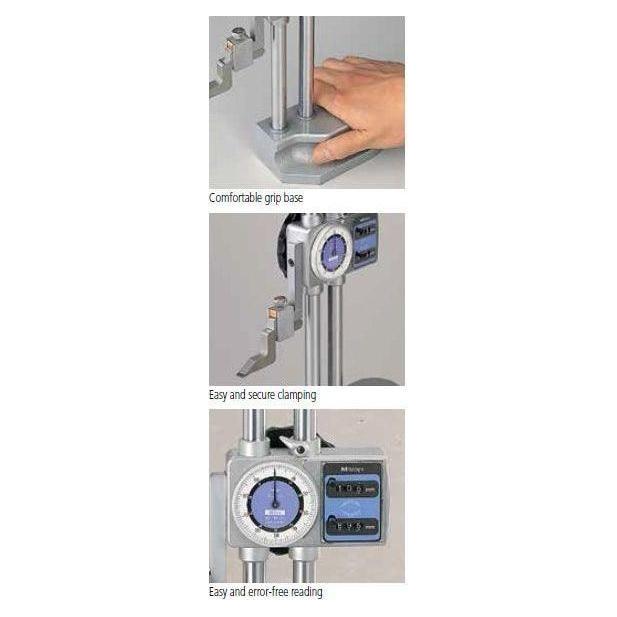

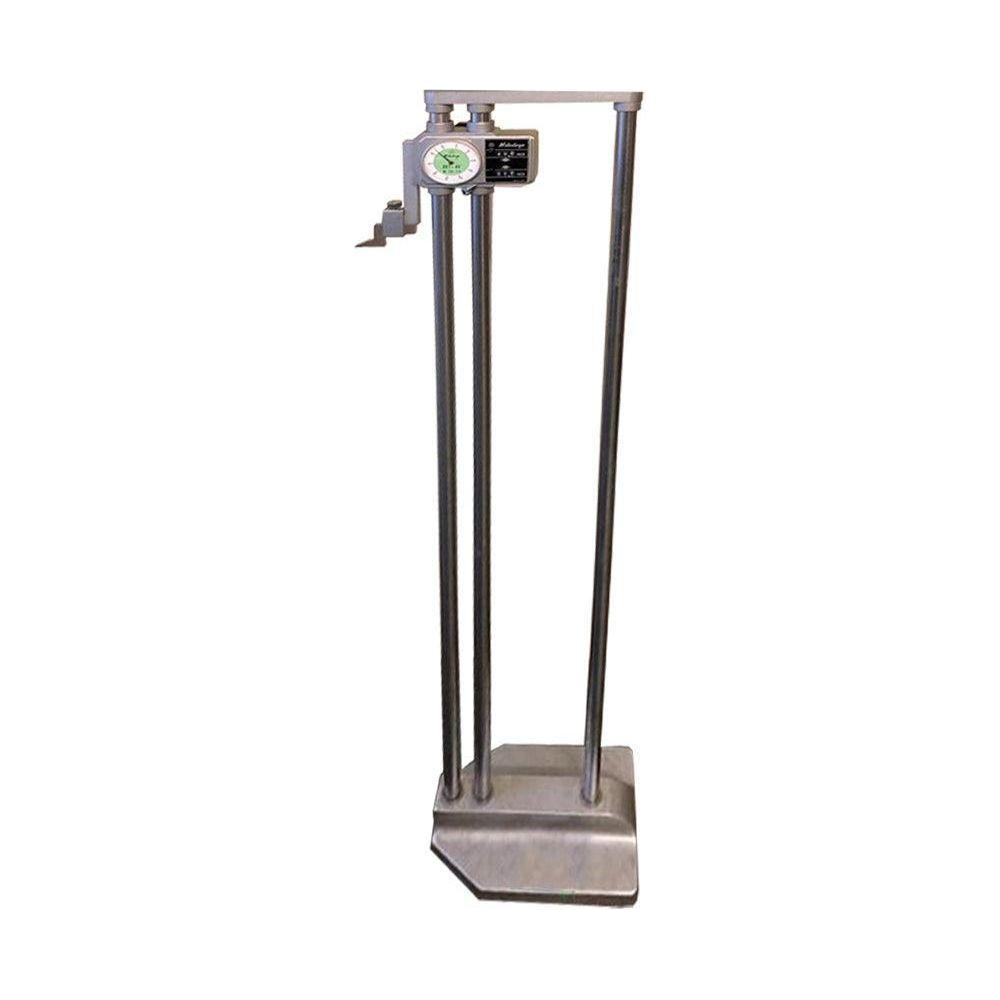

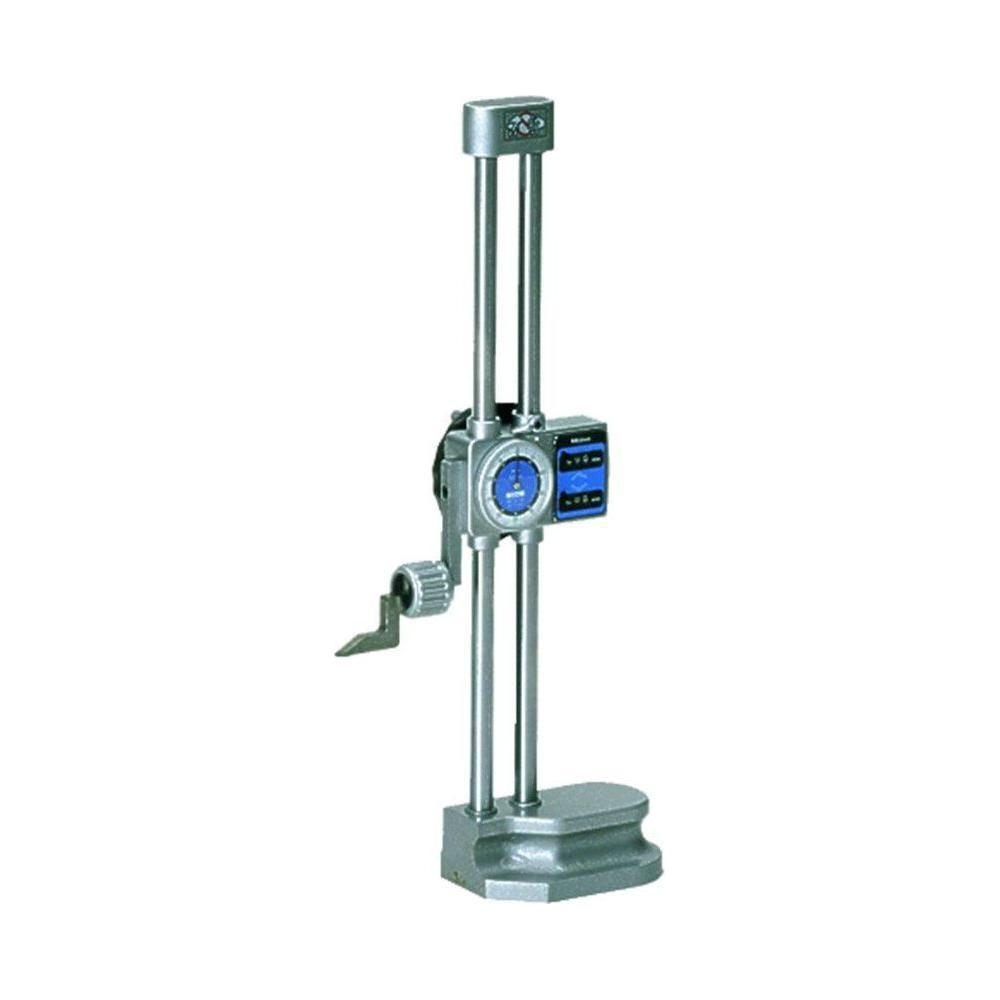

• Dial Height Gauges – Height gauges with dial indicators for quicker readings and inspection tasks

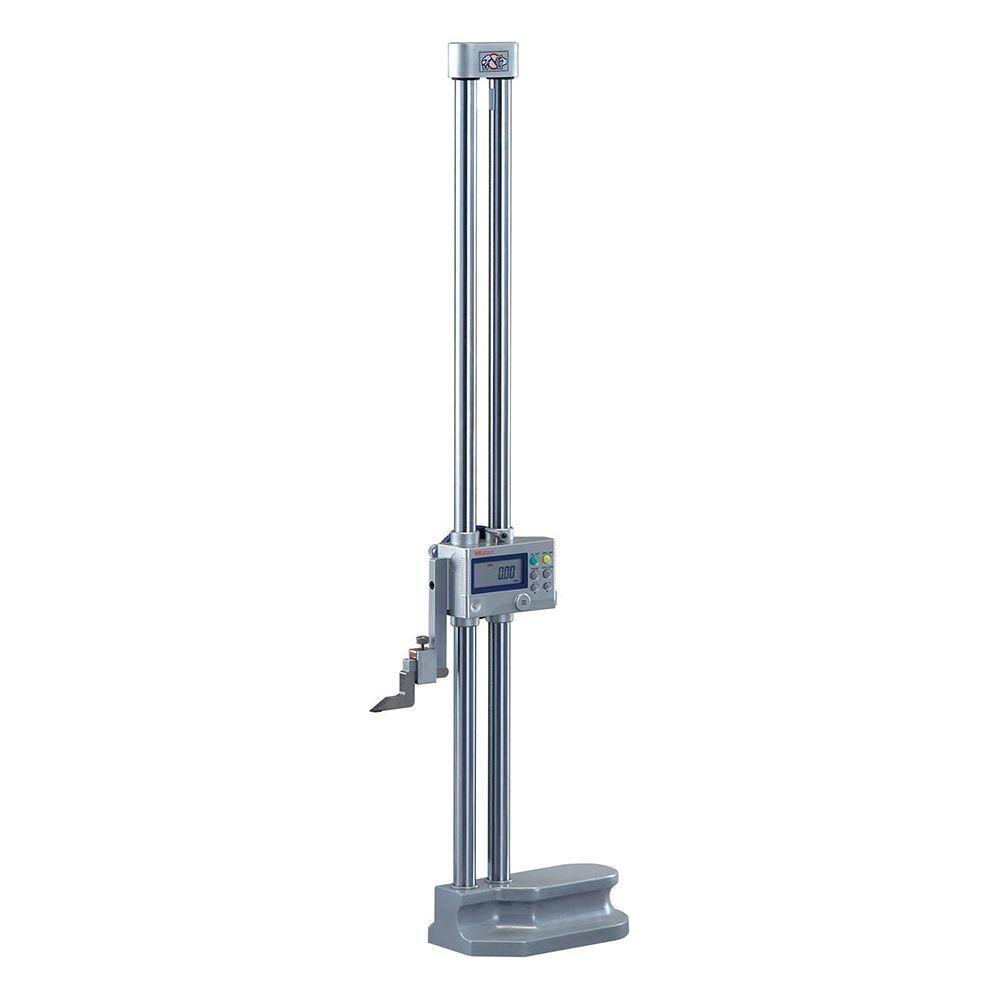

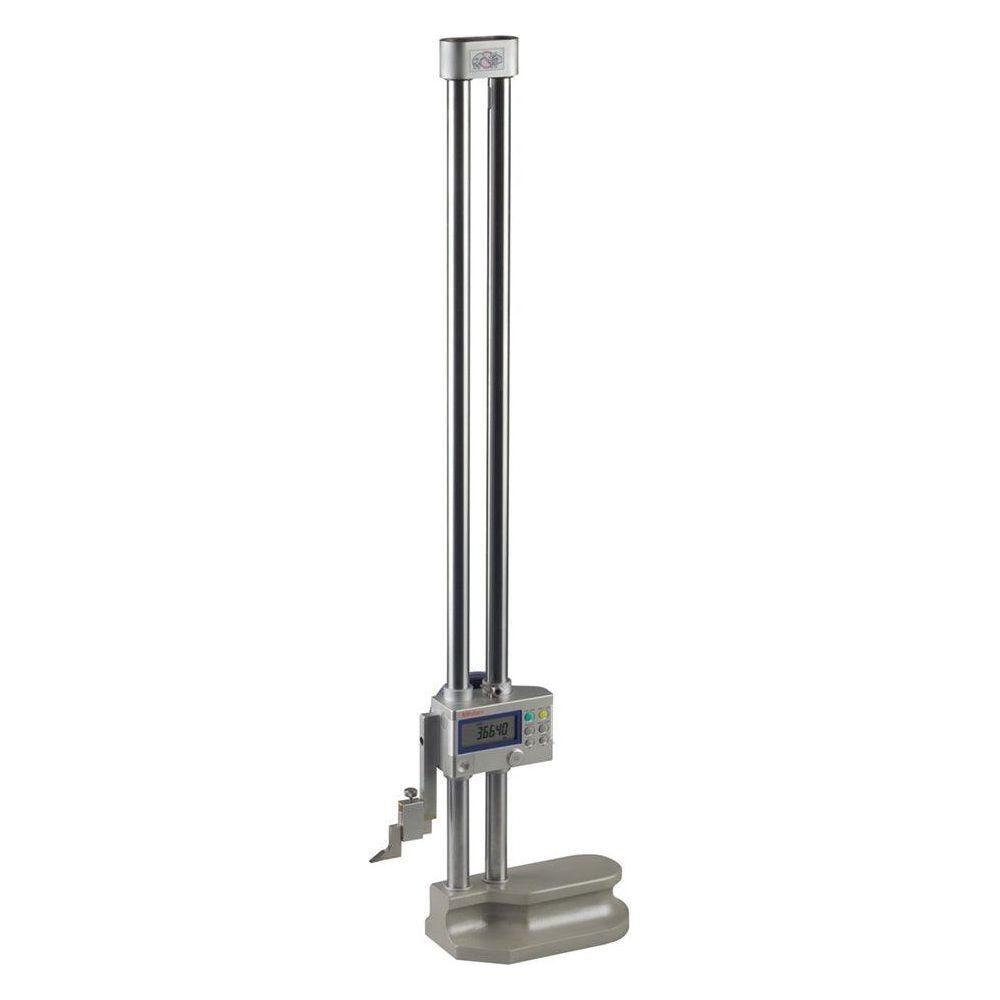

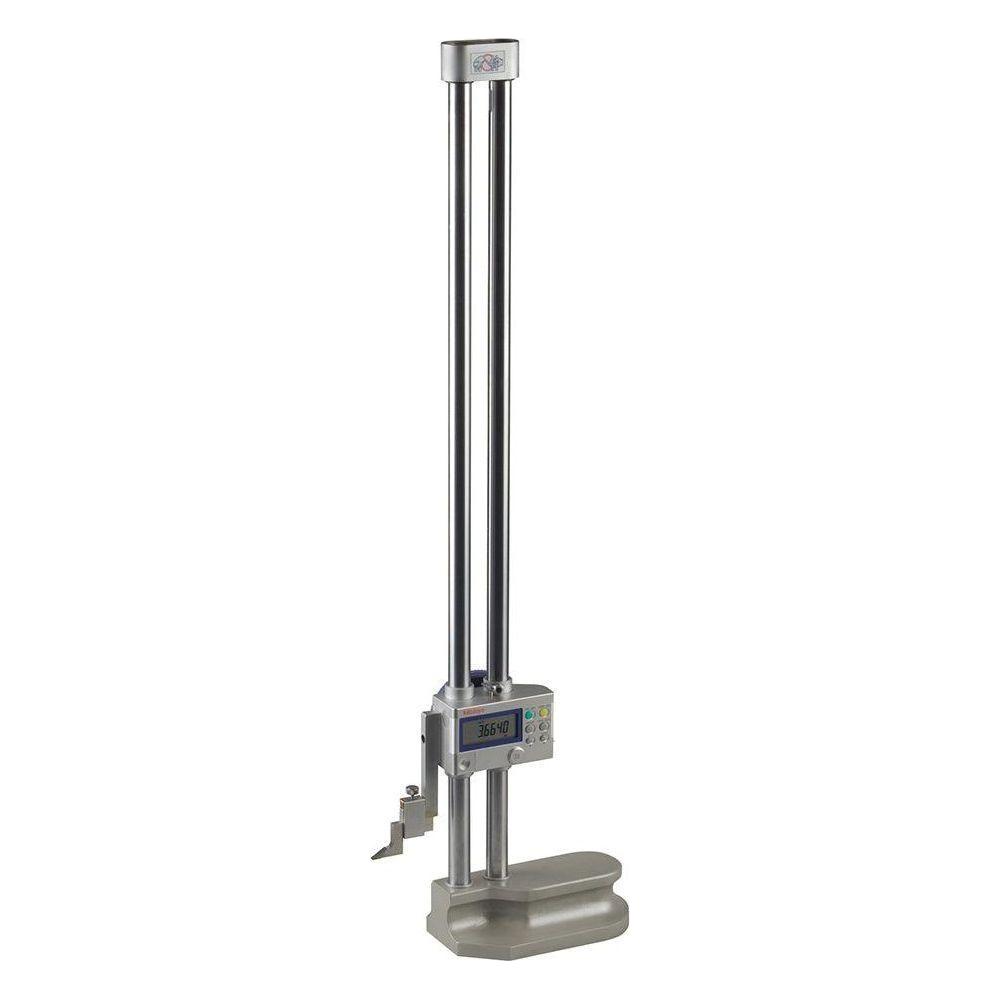

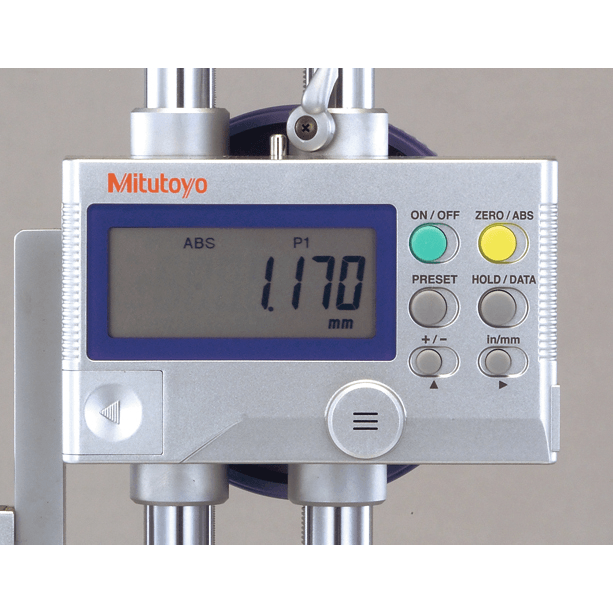

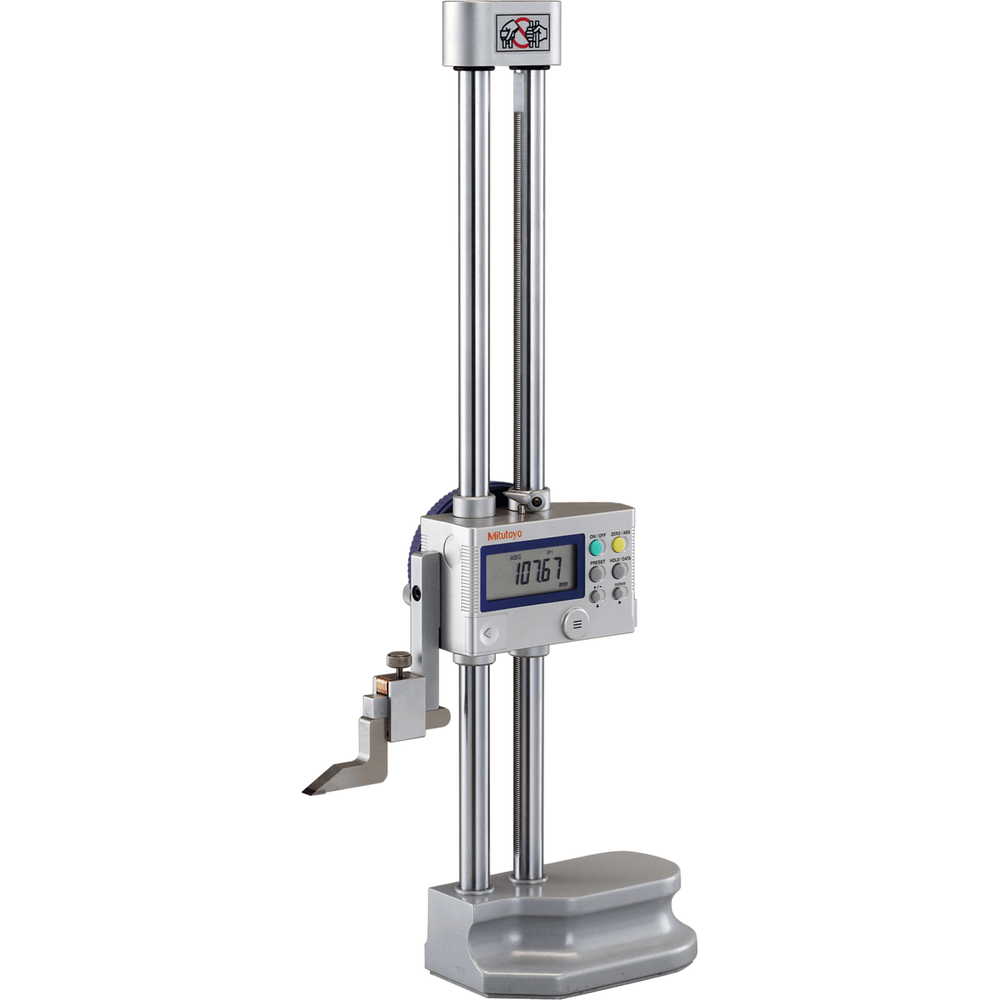

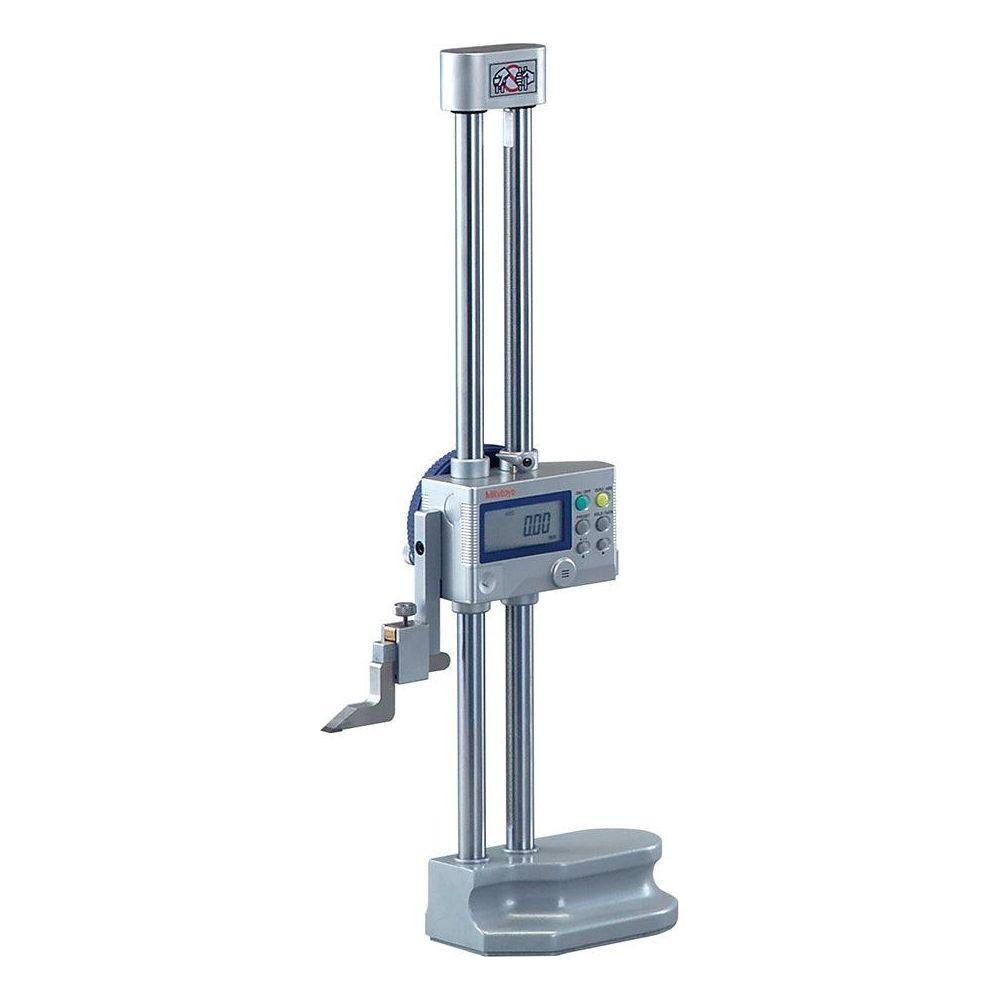

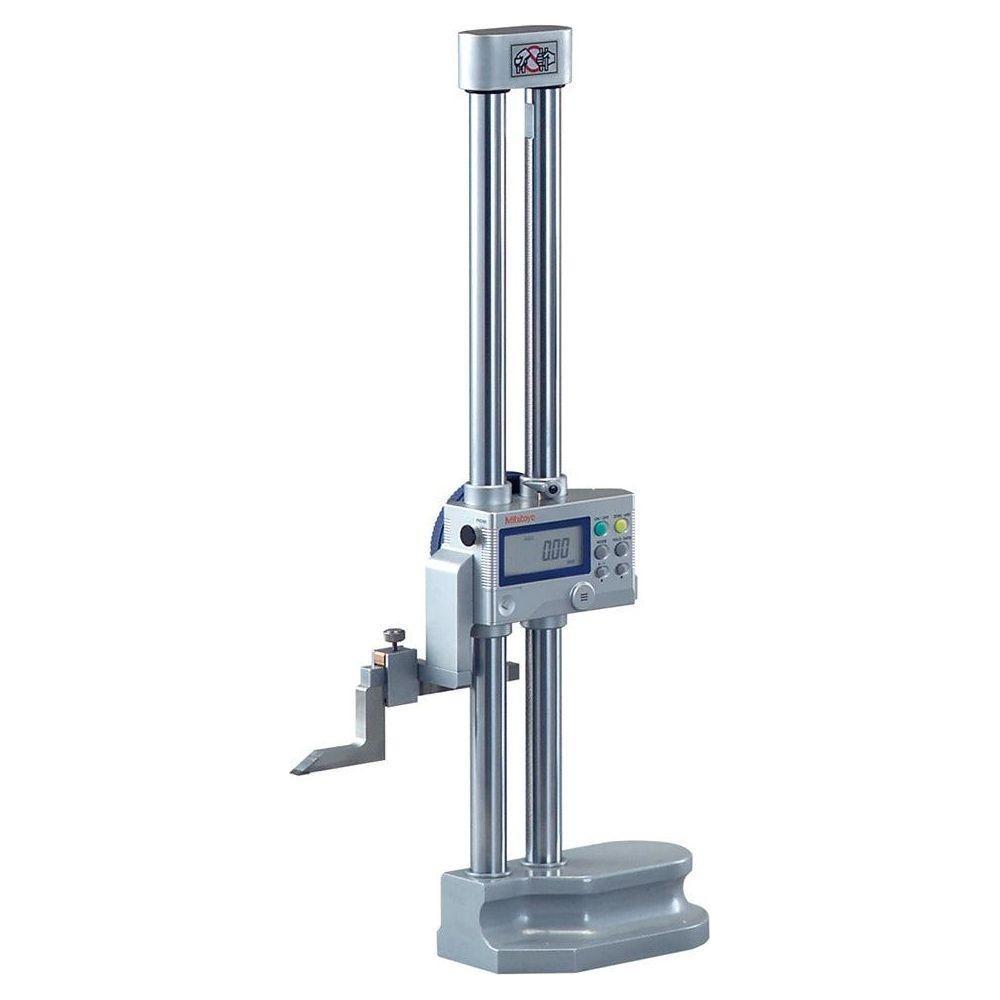

• Digital Height Gauges – Electronic display models for easy reading and measurement recording (model-dependent)
• Height Gauge Marking Tools – Scriber-equipped gauges used for layout marking on workpieces
• Inspection & Layout Tools – Measurement tools used with surface plates and precision inspection setups

Height Gauge Applications

• Measuring vertical dimensions of machined parts and components
• Layout marking and scribing lines on metal or engineering materials
• Quality control and dimensional inspection in machine shops
• Workshop measurement during fabrication and machining processes
• Surface plate measurement for accurate height reference
• Engineering and tool room measurement tasks

Key Product Highlights

• Precision Measurement Tool – Designed for accurate height measurement and layout work
• Multiple Reading Options – Available in vernier, dial, and digital configurations
• Stable Measurement Base – Designed for use on flat reference surfaces such as surface plates
• Workshop & Inspection Use – Suitable for machining, fabrication, and quality control tasks
• Consistent Layout & Checking – Useful for marking lines and verifying part dimensions

Why Buy from KHM Megatools?

• Price Match Program – Competitive value on measuring tools and precision instruments
• Same-Day Delivery within Metro Manila – Available for eligible items and confirmed orders
• Nationwide Delivery (Philippines) – Convenient shipping to workshops and industrial facilities
• Trusted Supplier for Professional Use – Serving machinists, fabricators, and maintenance teams
• Clear Product Listings – Review measurement range, resolution, and features before checkout

Frequently Asked Questions (FAQs)

Q: What is a height gauge used for?
A: A height gauge is used to measure vertical dimensions, mark layout lines, and perform inspection work on parts and components—typically used on a surface plate for accuracy.

Q: What is the difference between vernier, dial, and digital height gauges?
A: Vernier height gauges use a scale for manual reading, dial gauges provide readings through a dial indicator, and digital height gauges display measurements electronically. The best option depends on user preference and measurement needs.

Q: Can height gauges be used for layout marking?
A: Yes. Many height gauges include a scriber that allows users to mark layout lines on workpieces during fabrication or machining processes.

Q: Do height gauges require a surface plate?
A: Height gauges are typically used on surface plates or other flat reference surfaces to ensure accurate and consistent measurement.

Q: Do height gauges come with a warranty?
A: Warranty varies by product. Please check the product page first. If warranty information is not stated, refer to our warranty policy for guidance. Learn more about Warranty Policy »
